AI250 Eurorack BXR

The AI250 BXR is a eurorack version of vintage nuclear test equipment. It can be used as an audio mangler, cv generator, and VCO. The manual is here. The AI250 DIY build guide is here.

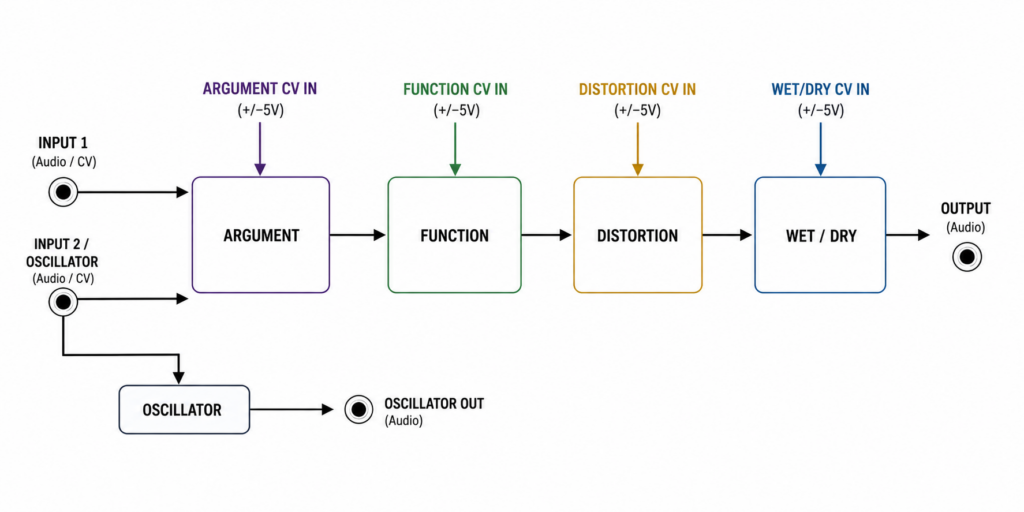

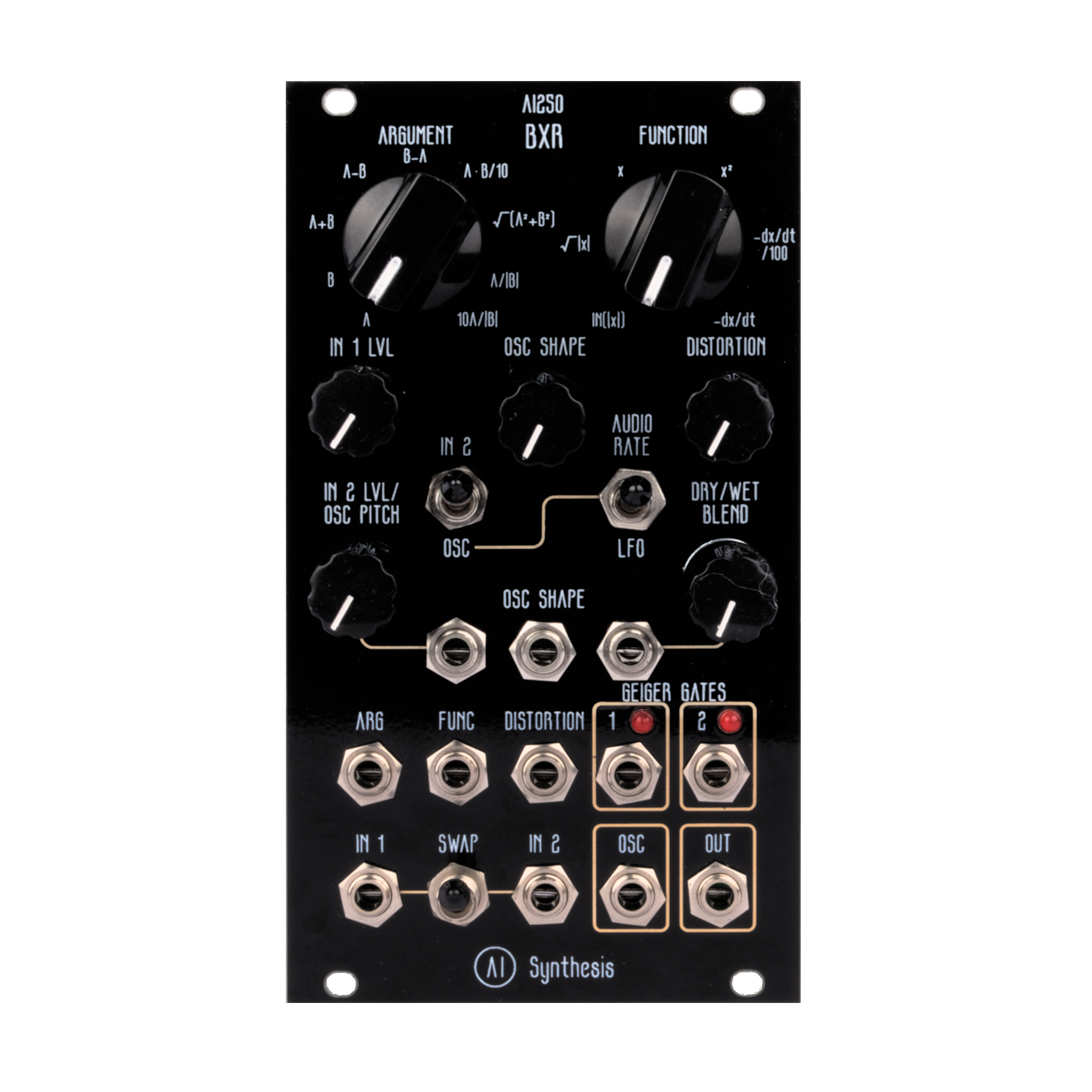

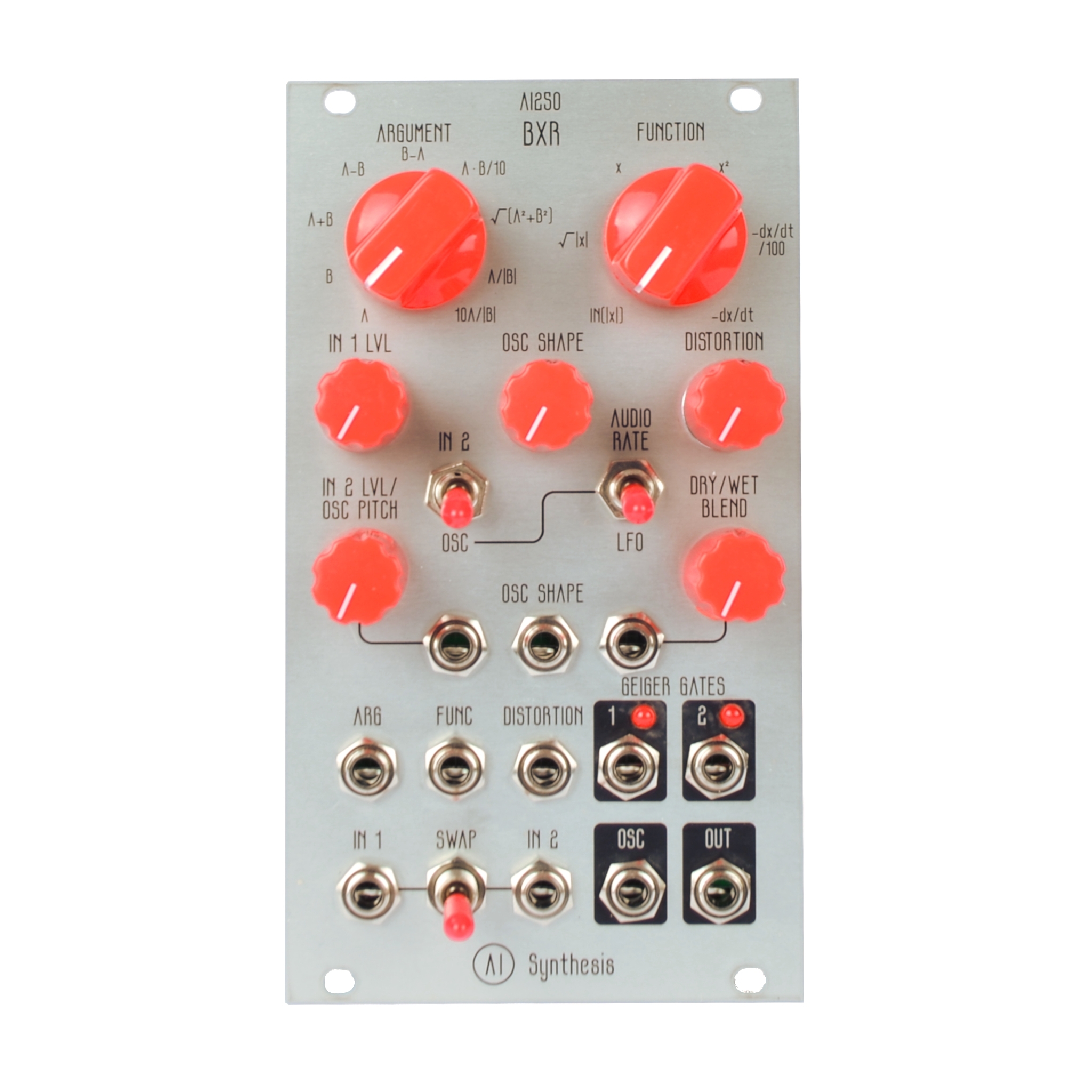

The AI250 BXR is a eurorack module inspired by vintage nuclear test equipment. It can be used as an audio mangler, cv generator, and VCO. The BXR is a nod to vintage Boxcar Averagers, which were designed to acquire and analyze fast signals. The AI250 specifically replicates the real-time mathematical portion of a Boxcar Averager System, and processes audio or cv signals against either another signal or its internal v/o variable wave-shape VCO. The internal VCO has 11 different voltage select-able wave shapes and can be played v/O.

The AI250 BXR is digital, with 24 bit audio and runs off the daisy seed. Kits contain pre-programmed daisy seeds. The most recent firmware is here.
