AI001 Multiple
This Multiple Eurorack Synthesizer Module will not only teach you how to solder, and teach you about Grounding and Signal, it will also add a key utility module to your DIY Modular Synthesizer.
Here is the
DIY Synthesizer Multiple Build Guide.
Here is the DIY Synthesizer Multiple Manual.
$10.00 – $35.00
Product Details

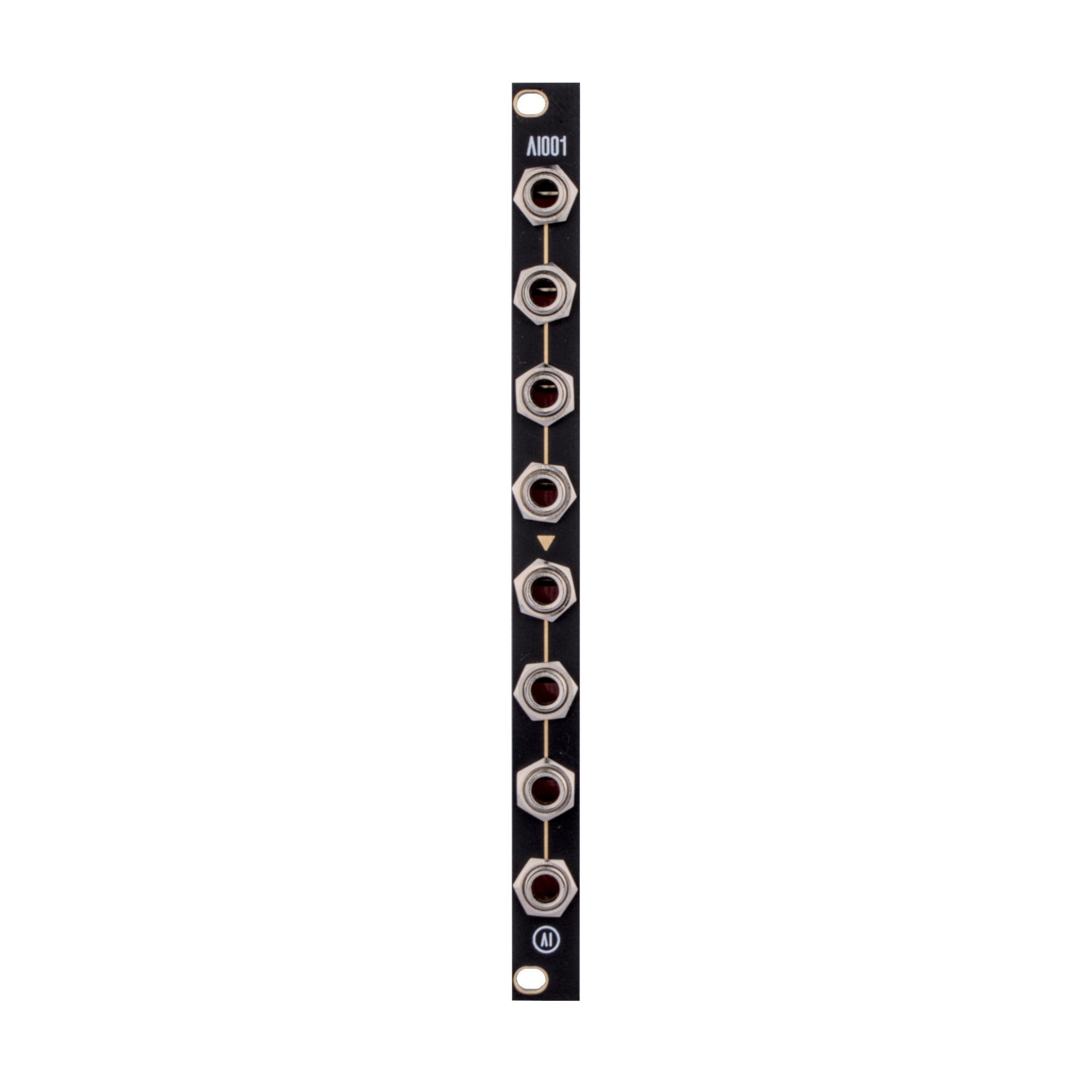

The AI001 Multiple Eurorack Synthesizer Module is a 1x6 or a 2x3 passive multiple in only 2hp! It is critically important to be able to split and distribute your modular's signals to multiple destinations with the AI001 Multiple Eurorack Synthesizer Module. Because the module takes up only 2HP, they can be placed anywhere.
The Multiple Eurorack Synthesizer Module can be used as either a 2x3 passive multiple, or a 1x6. The first set of four are linked together, and if nothing is plugged into the 5th jack, then that signal continues to the 6th, 7th, and 8th as well. If a cable is plugged into the 5th jack, then those signals are distributed to the 6th, 7th, and 8th jacks and it functions as a 2x3 multiple.
This Multiple Eurorack Synthesizer Module kit will not only teach you how to solder, and teach you about Grounding and Signal flow, it will also add a key Multiple utility module to your DIY Modular Synthesizer.
This is an ideal kit for a beginner learning DIY electronics, and requires no wiring at all! All parts are soldered directly to the PCB for ease of building.
We recommend this Multiple Eurorack Synthesizer Module kit as the first DIY module you build. It is easy, and can be built in a single 5 minute sitting. If it works, you are ready to build other modules. We suggest the AI002 Mixer Synthesizer Module.
The Multiple Eurorack Synthesizer Module allows for the passive multiplication of signals. This allows you to, for instance, send the Envelope from a Looping ADSR Envelope Generator to control both a filter and an AI007 Quad VCA Mixer. Or you can use a Multiple Eurorack Synthesizer Module to send a gate or trigger to two Looping ADSR Envelope Generator to have different voltage contours for a
The Multiple Eurorack Synthesizer Module Kit contains everything you need to build your Multiple Eurorack Synthesizer Module:
- 3.5 mm Jacks (8)
- A PCB
- A 2HP Eurorack Panel
- Mounting Screws
| HP | 2 |
|---|
